USB4 Traffic Sharing Basics
USB4 combines multiple logical uses—bulk data for storage, packetized data for networking, and tunneled display video—onto one physical high-speed link. The host controller and the USB4 fabric decide how to time-share the link so that packets from different functions do not collide. In practice, the “sharing” happens through scheduling and flow control inside the USB4/Thunderbolt-style transport layer, not by magic bandwidth splitting that stays fair under load.
When a USB4 port carries a display, the video stream usually travels as tunneled DisplayPort (DP) packets over the USB4 link. Storage traffic typically uses bulk transfers, which can burst and then wait for acknowledgments. Networking traffic, when present, uses its own packetization and retransmission behavior. Those differences matter because the scheduler tries to meet latency needs for interactive video while still moving bulk data.

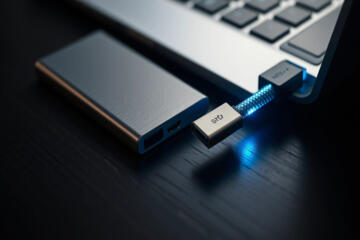

A practical example: copying a large folder to a USB4 SSD while driving a 4K monitor over the same cable. If the display is active, the link must reserve time for video packets; the SSD throughput may drop compared with a setup that uses a separate link. The drop is not guaranteed, but it is common enough that you should expect some contention when both streams are heavy.
On some systems, you can see the behavior indirectly in OS performance counters or by watching transfer rates in a file-copy tool. I once saw a laptop running firmware labeled “BIOS 1.12” hold steady video refresh while the SSD copy rate oscillated in short intervals—annoying, but consistent with a scheduler that prioritizes display timing.
Common Misunderstandings And Bottlenecks
People often assume USB4 “shares bandwidth evenly” across functions. USB4 does not promise equal slices; it schedules based on traffic type, buffering, and timing constraints. Display streams have strict timing requirements, so they can trigger more frequent scheduling decisions than bulk storage.
Another misunderstanding is treating the cable as the only limiter. Cable quality affects signal integrity and can force lower link speeds after training, which reduces total throughput for every traffic type. Even with a good cable, the device endpoints matter: a USB4 dock’s internal controller, the display adapter’s receiver, and the SSD’s controller all shape how much data can be moved per unit time.
USB4 also depends on link training and power management. If the link drops into a lower power state during idle periods, it may later retrain when traffic resumes, adding latency spikes. Those spikes can show up as stutter in video or as brief pauses in storage transfers, especially when the host and dock disagree on power policy.
There is also a “tunneling” dependency. DisplayPort tunneling wraps DP packets inside the USB4 transport. That wrapping adds overhead, and the effective payload rate depends on the negotiated video mode (resolution, refresh rate, and color format). If you switch a monitor from 60 Hz to 120 Hz, the display stream consumes more link time, leaving less for storage bursts.
Finally, many users test with one workload at a time. Real contention happens when the host is also doing background tasks—indexing, downloads, or USB device enumeration. Those tasks can create additional bursts that compete with your chosen storage and display streams.
How Scheduling Affects Real Throughput
USB4 scheduling aims to keep interactive streams stable while still moving bulk data. In a simplified view, the scheduler allocates time slots for different traffic classes, then uses flow control to prevent buffer overruns. Video tunneling tends to require periodic packet delivery, so it can “reserve” recurring opportunities on the link.
Bulk storage transfers behave differently. Bulk endpoints can send large bursts, but they still rely on acknowledgments and retransmission rules. When the scheduler inserts video packet windows, the bulk sender may have to pause, refill, and resume. That pattern can reduce average throughput and increase variance, even if the link’s theoretical maximum remains unchanged.
Display timing also interacts with buffering in the monitor and the dock. Some docks buffer more aggressively, which can hide short scheduling hiccups but increases end-to-end latency. If you notice cursor lag or delayed screen updates while copying files, that delay can come from buffering plus scheduling, not from “USB4 being slow” in a generic sense.
One more detail: USB4 link speed negotiation can differ between devices. A USB4 SSD might negotiate a high-speed mode, while a dock’s display path might negotiate a different effective rate due to DP mode constraints. The lowest common effective rate often governs how much payload can be carried when all streams are active.
Solutions And Practical Checks
Verify Link Speed And Mode
Start by checking the negotiated USB4 and display modes. On Windows, you can inspect device properties for USB controller details, and you can confirm the monitor’s active refresh rate and resolution in display settings. On Linux, tools like lsusb and kernel logs can show negotiated link characteristics, though exact USB4 details vary by driver and kernel version.
If your monitor supports multiple refresh rates, test with 60 Hz first, then raise to 120 Hz. If storage throughput improves at 60 Hz, the display stream is consuming more scheduling time at higher refresh. This is a controlled way to separate “cable or dock problem” from “bandwidth contention by design.”
Also check the cable rating. USB4 cables are not all equal in practice; passive cables can work for some distances and modes, while active cables may be needed for higher speeds or longer runs. If the link retrains after plugging in, the system may be falling back to a lower speed, which affects both display and storage.
Separate High-Load Paths When Possible
If you need sustained storage throughput while driving a high-bandwidth display, use separate physical links. For example, connect the USB4 SSD to a different port than the one used for the display, or use a display connection that does not tunnel over the same USB4 link. Many laptops have at least one dedicated video output path, and using it can reduce contention.
When separation is not possible, reduce the display load. Lowering refresh rate from 120 Hz to 60 Hz or switching to a less demanding color format can reduce the tunneled DP bandwidth. The exact effect depends on the monitor’s mode support and the dock’s DP tunneling implementation, so measure after each change.
A mild frustration: some docks advertise “USB4 + dual display,” but the internal controller may still time-share resources in ways that reduce storage performance. You can often infer this by running a sustained copy test while toggling one display on and off.
Use Realistic Workload Tests
Measure with a repeatable test that matches your use case. For storage, test sustained writes with a tool that writes a large file set long enough to avoid short-cache effects. For display, confirm that the video remains smooth during the test; stutter indicates scheduling or buffering issues.
On Windows, you can use built-in performance counters and a file-copy test that runs for at least several minutes. On macOS and Linux, similar sustained transfer tests can be done with standard copy tools, but results depend on filesystem and caching behavior. I tend to trust results only when the transfer rate stabilizes for a meaningful interval—short spikes can mislead.
Record the configuration: cable type, dock model, monitor resolution/refresh, and whether the SSD is connected through the same dock. If you later change one variable, you can attribute the difference to a specific mechanism rather than guessing.
Update Firmware And Drivers Carefully
USB4 behavior depends on firmware in the host, dock, and sometimes the display adapter. Check for firmware updates from the laptop vendor and the dock vendor, then retest. A firmware update can change power management policies or scheduling behavior, which affects how often the link pauses for video timing.
Be cautious with driver updates that change USB controller behavior. If you update the USB4/Thunderbolt driver stack, keep a rollback plan. On one workstation, a dock stopped negotiating the expected display mode after a driver update dated 2024-10; reverting restored the previous behavior, which matched the idea that negotiation logic lives in the software stack too.
After updates, confirm both display mode and storage throughput again. A “works” check based only on whether the monitor lights up can miss a fallback to a lower refresh rate or a reduced link speed.
Case Examples From Realistic Scenarios
SSD Copy While Driving 4K60
An anonymized user connects a USB4 laptop to a dock using one cable. They attach a USB4 SSD to the dock and connect a 4K monitor at 60 Hz through the same dock. During a large file copy, the SSD write rate averages lower than when the SSD connects directly to the laptop, and the rate shows periodic dips.
The likely mechanism is contention: the tunneled DP stream consumes recurring scheduling windows, and bulk writes pause between those windows. The user improves results by switching the monitor to 30 Hz test mode and observing higher sustained writes, then returns to 60 Hz and accepts the reduced average as the expected tradeoff for single-cable convenience.
Dual Display With High Refresh
Another anonymized scenario involves a dock that supports two displays over USB4. The user runs one display at 120 Hz and another at 60 Hz while copying data to a USB4 SSD. The system shows occasional frame drops and the storage transfer becomes bursty rather than smooth.
In this case, the dock’s internal bandwidth allocation and the negotiated DP modes likely push the link close to its effective limit. The user reduces the 120 Hz display to 60 Hz and reruns the same copy test. Frame drops stop and the SSD transfer becomes steadier, consistent with the scheduler having more headroom for both video streams.
USB4 Sharing Checklist And Tradeoffs
| What You See | Most Likely Cause | What To Check | What To Try |
|---|---|---|---|
| Lower SSD throughput during display use | Video tunneling consumes recurring link time | Monitor refresh, resolution, dock model | Lower refresh or use a separate video path |
| Video stutter during heavy writes | Link retraining, power policy, or buffering limits | Cable rating, link speed negotiation | Use a higher-grade cable and update dock firmware |
| Bursty transfers | Scheduler pauses bulk traffic for video windows | Sustained test duration and stability | Test with one display off, then compare |
| Works at one refresh rate but not another | Effective bandwidth limit for the chosen DP mode | DP mode details and dock tunneling support | Stay within supported modes or reduce color/refresh |
Step-by-step checklist you can run in under an hour:
- Confirm the monitor’s active resolution and refresh rate in display settings.
- Run a sustained storage write test for several minutes while the display stays active.
- Turn off the display (or switch to a lower refresh) and rerun the same storage test.
- Swap to a different USB4 cable rated for the distance you use, then retest.
- Update host and dock firmware, then repeat steps 2–4 to confirm the change.
Common Mistakes That Waste Time
One frequent mistake is blaming USB4 for performance drops that come from the SSD itself. Many USB enclosures and docks use controllers with different sustained write behavior, and thermal throttling can reduce throughput during long copies. If the SSD rate falls over time even with no display active, the bottleneck is not the USB4 scheduler.
Another mistake is testing with a short transfer. USB4 scheduling effects and link retraining show up over longer intervals, while short tests can finish before the system enters a different power or buffering state. A test that runs long enough to reach steady behavior gives you a more honest signal.
People also ignore display mode overhead. A monitor at 4K120 consumes far more link time than 4K60, and the dock may fall back to a lower mode if the link cannot sustain it. If you only check that the monitor is “connected,” you can miss a silent fallback that changes both video quality and available bandwidth.
Finally, users sometimes update only one component. If the host firmware changes negotiation behavior but the dock firmware stays old, the system may behave inconsistently. Retesting after each update prevents chasing ghosts.
FAQ
Does USB4 split bandwidth evenly
No. USB4 schedules traffic based on timing needs and flow control. Display tunneling typically receives recurring opportunities to meet video timing, while bulk storage uses whatever time remains.
Why does my SSD slow down with a monitor
The tunneled DisplayPort stream consumes link time and adds transport overhead. When the display mode uses more bandwidth (higher refresh or resolution), bulk transfers often pause more frequently, reducing average throughput.
Can a USB4 dock cause video stutter
Yes. Docks add internal controllers, buffering, and power management decisions. If the dock cannot sustain the negotiated display mode while handling bulk traffic, you can see stutter or bursty transfers.
Do cable quality and length matter
They can. Poor signal integrity can force lower link speeds after training, reducing total payload capacity for both display and storage. Active cables may be needed for longer runs or higher modes.
How can I diagnose the bottleneck
Compare sustained storage tests with the display off, then repeat with different refresh rates and cables. Confirm the monitor’s actual mode in settings and retest after firmware updates to separate scheduler contention from hardware limits.
Author's Insight
USB4’s “one cable for everything” behavior comes from transport scheduling and tunneling, not from a fixed, fair bandwidth split. Display traffic has timing constraints that often lead to more frequent scheduling decisions than bulk storage. The most reliable way to evaluate your setup is to measure sustained transfers while keeping display mode constant, then change one variable at a time.
Because negotiation details depend on host firmware, dock controllers, and driver stacks, results vary across systems. Evidence from USB4/DP tunneling behavior and common link-training effects supports the contention model, but exact throughput numbers depend on the specific devices and negotiated modes.
Key Takeaways
- USB4 shares one link by scheduling different traffic classes, not by equal bandwidth partitioning.
- Display tunneling (often DisplayPort over USB4) can reduce sustained storage throughput when both run at high load.
- Cable quality, link training, and dock internal controllers can change effective throughput and stability.
- Use controlled tests: compare sustained storage with display off, then vary refresh rate and cable type.
- Update host and dock firmware, then verify the negotiated display mode and repeat measurements.
